CCMkI v1.0 (Classic Compressor)
56 MB
The CCMkI is a VST3/AU compressor inspired by the legendary 1176. It’s designed to deliver punchy, high-quality compression with a simple, intuitive interface and built-in input saturation for added warmth.

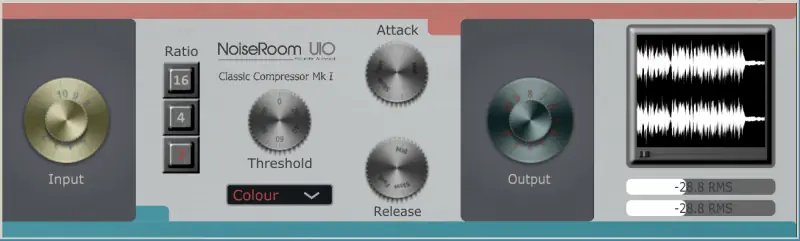

This plugin is based on Erick Tarr’s compression algorithm, enhanced with a biquad filter and exponential saturation for rich tonal shaping. The minimalist GUI provides six essential controls:
- Input
- Ratio
- Threshold
- Attack
- Release
- Output
Additionally, it offers real-time signal visualization, including an RMS meter and waveform display.
Developed as a final project for Ear Candy Technologies’ 2024 “Developing Plugins” course, CCMkI is perfect for producers looking for classic compression with modern flexibility.
🔥 Key Features
✅ Real-time compression & metering
✅ Saturation for added warmth
✅ Four versatile presets
✅ Intuitive, user-friendly design
✅ Multiple ratio combinations for unique compression styles
🎛️ Parameters Explained
🔹 Input: Adjusts the pre-processing signal level, introducing saturation at higher levels.
🔹 Ratio: Determines how aggressively the signal is compressed. Special multi-ratio modes unlock unique compression characteristics.
🔹 Threshold: Sets the level at which compression begins. Higher settings apply input saturation without attenuation.
🔹 Attack: Controls how quickly compression engages. Ranges from 20µs (Fast) to 800µs (Slow).
🔹 Release: Adjusts how fast the compressor recovers. Ranges from 50ms (Fast) to 1.1s (Slow).
🔹 Output: Balances the final signal level after compression.
🎚️ Presets
🔸 Sudaka – Hard limiter with a slow attack and fast release for punchy transients. Perfect for drums and room mics.
🔸 Orangine – Heavy compression with a mid/fast attack & release, suitable for general mixing.
🔸 Colour – Adds harmonic saturation with light compression. Great for warming up instruments.
🔸 Glue – Moderate compression designed to blend instruments together on a mix bus.
🎛️ Multi-Ratio Combinations
Unlock unique compression styles by combining ratio buttons:
✅ 2:1 + 4:1 → 6:1
✅ 2:1 + 16:1 → 8:1
✅ 4:1 + 16:1 → 20:1
✅ 2:1 + 4:1 + 16:1 → 12:1
📊 Real-Time Visualization & Metering
🎛 VU Meter – Displays RMS output levels for precise gain control.
🎛 Waveform Display – See your compressed signal in real time.
🎛 Adjustable Buffer Slider – Zoom in and out to visualize smaller or larger waveforms.
Final Thoughts
The CCMkI is a powerful yet simple compressor, blending classic 1176-style compression with modern flexibility. Whether you’re looking for aggressive limiting, warm saturation, or smooth mix bus compression, this plugin has you covered!
https://www.jhonatanlopez.com/sound-design/
ClassicCompressorCCMkI ( 56 MB )
