Signal Analyzer

Signal Analyzer

size 0.67 MB

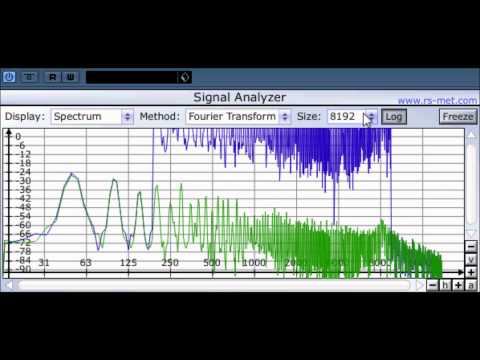

Signal Analyzer is a combined oscillo

scope/spectrum-analyzer plugin for inspecting signals in realtime in the time and frequency domain.
The oscilloscope’s refresh rate may be synchronized to the period of the incoming signal to stabilize the plot of periodic waveforms. Both views may be frozen and the frozen display can be exported into a .png file.

• Oscilloscope and spectrum analyzer.
• Independent zoom for both axes.
• Synchronization to input signal (oscilloscope).
• Spectral resolution up to 32768 bands.

http://www.rs-met.com/



SignalAnalyzer  ( 0.67 MB )
