Shuttle-Echo

size 3.16 MB

Shuttle-Echo is a delay device that focuses on imperfections in the repeats.
Especially good for slap-back stuff & wild echo madness (the delay-time can be modulated).

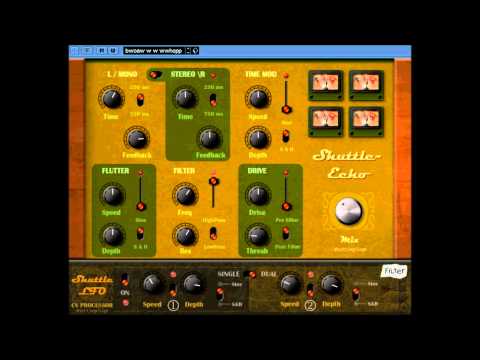

Shuttle-Echo_extended1.2 (included in the zip) comes with dedicated LFO section for the filter frequency.

MONO mode does NOT distort the original stereo-image. Each channel has it’s own delay-chain, in mono-mode they both use the same settings.
TIME: delay time.
FEEDBACK: amount of repeats.
250 ms/750 ms: maximum delay time.
TIME MOD: Modulates the delay time. The slider activates the effect & sets how much the delay time is affected.
SINE/S&H: Selects between a sinewave or sample & hold LFO. (sample & hold changes to a random delaytime value at the rate of the speed control).
FLUTTER: Pitch modulation effect (applied to the repeats only). The slider activates the effect & sets the mix.
SINE/S&H: Selects between a sinewave or sample & hold waveform. (sample & hold creates random pitch changes at the rate of the speed control)
FILTER: The slider activates & controls the mix of the filter.
FREQ: Cutoff frequency.
RES: Resonance.
HIGHPASS/LOWPASS: Filter mode.
DRIVE: Overdrive (applied to the repeats only). The slider activates & controls the dry/wet mix.
DRIVE: amount of drive (waveshape).
TRHESH: Threshold. This sets the level where the waveshaping occurs (increases volume with high drive settings).
PRE FILTER/POST FILTER: puts the drive-section before or after the filter..
